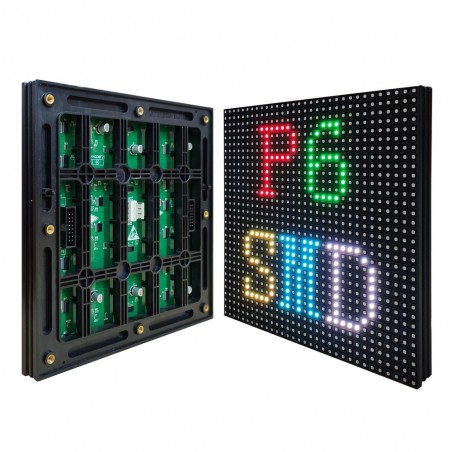

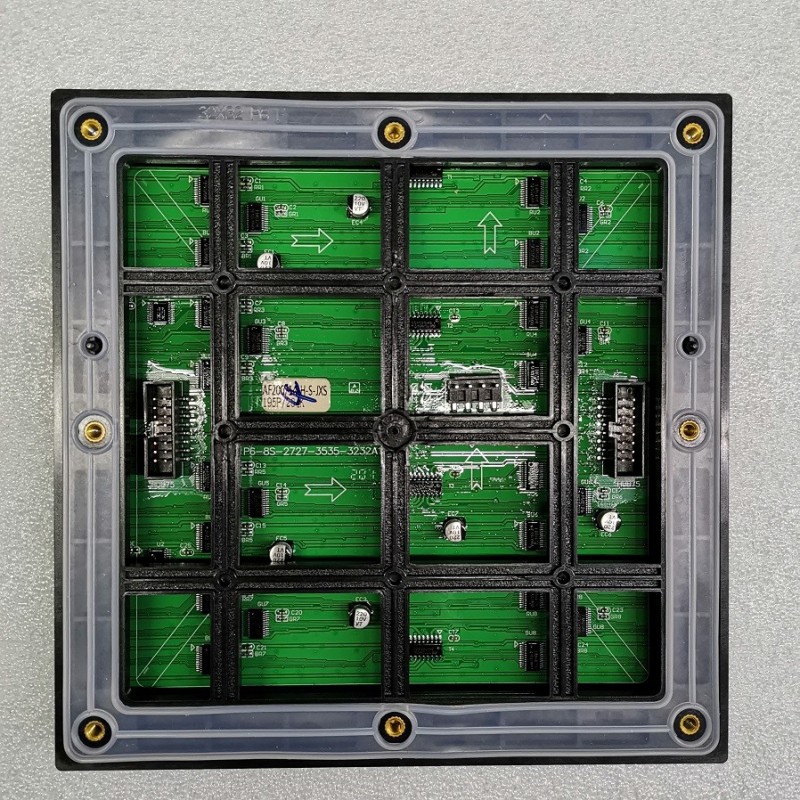

Model Number P6-8S
Module size 192mm*192mm
Pixel pitch 6mm
Pixels Density 27777点/m2
Pixel configuration 1R1G1B
Package mode SMD2727 SMD3535
Pixel resolution 32dots(W)*32dots(H)
Max Power 35W
Module thickness 17.05mm
Weight 0.369kg
Drive type Constant drive
Scan mode 1/8scan
Port type HUB75
Brightness of white balance ≥6500cd/m2
Dimension 576mm*576mm
Module Number 9pcs
Power supply 5V/40A*2 pcs
Thermal discharge fan 1pcs
Pixel per cabinet 96mm*96mm
Best viewing distance 6M～40M
Best viewing angle 160°(W) 120°(H)
Temperature storage:-35℃～+85℃
working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 65mm
Working voltage AC110V～220V±10%
Average Power consumption <380W/㎡
Max.Power consumption <950W/㎡
Current <20mA(single LED)
Control method Synchronization
Driving device Constant drive IC
Refresh frequency >1800HZ
Grey scale/colors 16384, 16.7M 16384gray level/16.7M colors
MTBF >9000hours
