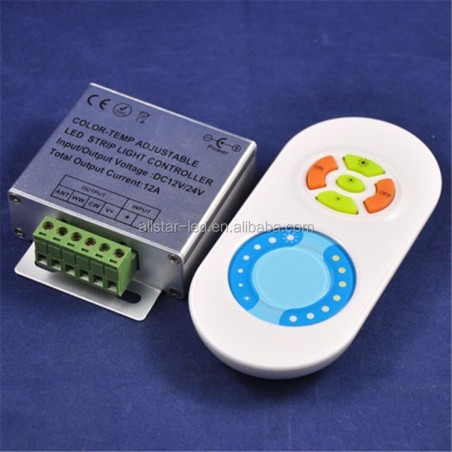

LED CCT Dimmer Color Temperature Controller Adjustable with Touch RF Wireless Remote Control for Dual Color Strip Light

LED CCT Dimmer Color Temperature Controller Adjustable with Touch RF Wireless Remote Control for Dual Color Strip Light

Introduction

"Ft-dm-rf is a multi-function touch LED controller. It adopts the most advanced PWM remote control technology, which can control all full-color LED lighting with three-wire two-circuit (common anode) with 50 levels of brightness adjustment. It is widely used in LED strip lights and dimmable LED lighting, etc."

Technical Parameters(Remote Control):

1: Power Supply: AAA Battery*2pcs

2: Covering Material: ABS

3: Manufacturing Process: Multi-color Printing and UV Varnish

Technical parameters (controller)

1. Working voltage: DC12V/24V

2. Output control: 2 outputs  WW/CW

3. Control current: 5A/circuit

4. Connection method: common anode

5: Wireless frequency: 433.92MHz

6. Receiving range: 20 meters

Key functions

1.Key 1: On

2.Key 2: Off

3.Key 3: Highest brightness

4.Key 4: Medium brightness

5.Key 5: Lowest brightness

How to use

1. Touch the color ring with your finger to change the brightness from highest to lowest (100%-1%, 50 levels to adjust).

2. Restore function. The previous settings will be restored when the power is turned on again.

3. Matching code

After turning on the power again, press key 3 once within 3 seconds. If the matching is successful, the indicator light will flash 3 times.

Clear the code, after turning on the power again, press key 3 5 times within 3 seconds. If the clearing is successful, the indicator light will flash 6 times
