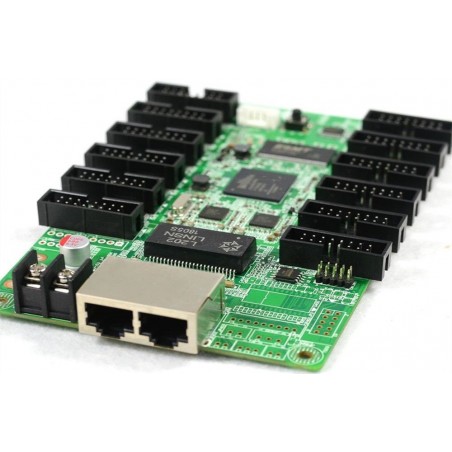

linsn RV908M32 receiving card with 12 hub75 ports

Main features
1 support 12-bit HDMI the colors input (required nine generations, sent cards fit)
2 by 18 signal processors, maximum support of each RGB 18 (260,000) Gray
1024X256 pixels,

3. Single card maximum support 1024 single point chromaticity correction
4. Supports single-card color space conversion
5.Support configuration file readback
6 support program replication
7 supports dual hot backup receiver card for demanding performances screen
8. Supports pixel fault detection (requires a dedicated chip support)
9.Support network cable BER test
10 support cable fault detection
11 support the cabinet door switch monitoring
12 two fan speed monitoring
13.Voltage monitoring of the 13 three-way all the way for the system, two external box power
14. Temperature monitoring
15. Humidity monitor (sold separately humidity sensor)
16 smoke monitor (sold separately smoke module)
17 in line with EU standards CE-EMC

1   R1   G1              2

3   B1   GND    4

5   R2   G2              6

7     B2     GND   8

9     A       B         10

11    C       D        12

13   CLK  LAT     14

15    OE     GND   16
