P2mm SMD1515 Indoor 128x64pixel

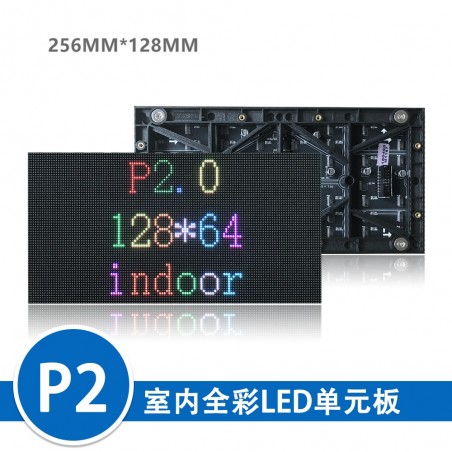

P2mm SMD1515 Indoor 128x64pixel SMD Stage LED module, Screen unit panel. Module size:256mm*128mm,Scan Mode:1/32 Scan

P2 INDOOR P2 SMD 3IN1 TECHNICAL PARAMETERS

Unit Module

Item

Model Number - P2-32S

Module size - 256mm*128mm

Pixel pitch - 2mm

Pixels Density - 250000点/m2

Pixel configuration - 1R1G1B

Package mode - SMD 3IN1 -1515

Pixel resolution - 128dots(W)*64 dots(H)

Max Power - 23W

Module thickness - 13mm

Weight - 0.352KG

Drive type  - 恒流驱动Constant drive

Scan mode - 1/32扫描 1/32scan

Port type - HUB75E

Brightness of white balance - ≥800cd/㎡

LED Cabinet

Dimension - 512mm*512mm

Monomer Module Number - 16pcs

Power supply - 5V/40A*1 pcs

Pixel per cabinet - 256*256

Best viewing distance - 2M～10M

Best viewing angle - 140°(W) 120°(H)

Temperature -storage:-35℃～+85℃ - working:-20℃～+50℃

Relative humidity - 10%-95%

屏Thickness - 65mm

Power

Working voltage - AC220V±10%

Average Power consumption - <280W/㎡

Max.Power consumption - <700W/㎡

Current - <15mA(single LED)

Control system

CPU - Pentium4 or above P4

Operation system - WIN98/2000/NT/XP/WIN7/WIN10/WIN11

Control method - Synchronization

Main technical

Driving device - Constant drive IC

Refresh frequency - >1920HZ

Grey scale/colors - 65536,16.7M

MTBF - >9000hours

Power switch - Automatic switch

Display Mode - ≥1024*768
