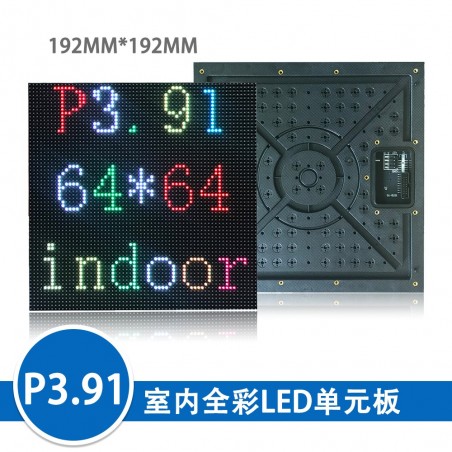

P3.91mm SMD2121 Indoor 64x64 pixel LED module

P3.91mm SMD2121 Indoor 64x64 pixel Stage LED module; Screen unit panel, Module size:250mm*250mm-Scan Mode:1/16 Scan

P3.91 INDOOR P3.91 SMD 3IN1 TECHNICAL PARAMETERS

Unit Module

Model Number

P3.91 - 16S

Module size - 250mm*250mm

Pixel pitch - 3.91mm

Pixels Density - 65536点/m2

Pixel configuration - 1R1G1B

Package mode - SMD2121

Pixel resolution - 64dots(W)*64 dots(H)

Max Power - 32W

Module thickness - 15mm（不含磁铁）27mm（含磁铁）

Weight - 0.573kg

Drive type - Constant drive

Scan mode - 1/16scan

Port type - HUB75

Brightness of white balance - ≥1200cd/m2

LED Cabinet

Dimension - 500mm*500mm

Monomer Module Number - 4pcs

Power supply - 5V/40A*1pcs

Pixel per cabinet - 128*128

Best viewing distance - 4M～20M

Best viewing angle - 160°(W) 120°(H)

Temperature - storage:-35℃～+85℃ - working:-20℃～+50℃

Relative humidity - 10%-95%

Weight - 7.5kg

Thickness - 65mm

Power - Working voltage - AC110～220V±10%

Average Power consumption - <168W/㎡

Max.Power consumption - <560W/㎡

Current - <18mA(single LED)

Control system - CPU - Pentium4 or above P4或以上

Operation system - WIN98/2000/NT/XP/WIN7/WIN10/WIN11

Control method - Synchronization

Main technical  parameter

Driving device - Constant drive IC

Refresh frequency - >1920HZ

Grey scale/colors - 16384, 16.7M

MTBF - >9000hours

Power switch - Automatic switch

Display Mode - ≥800*600/1024*768
