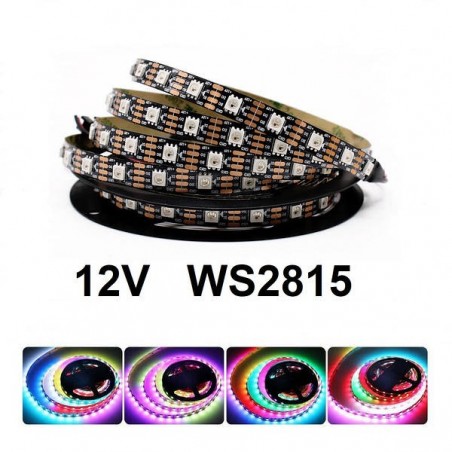

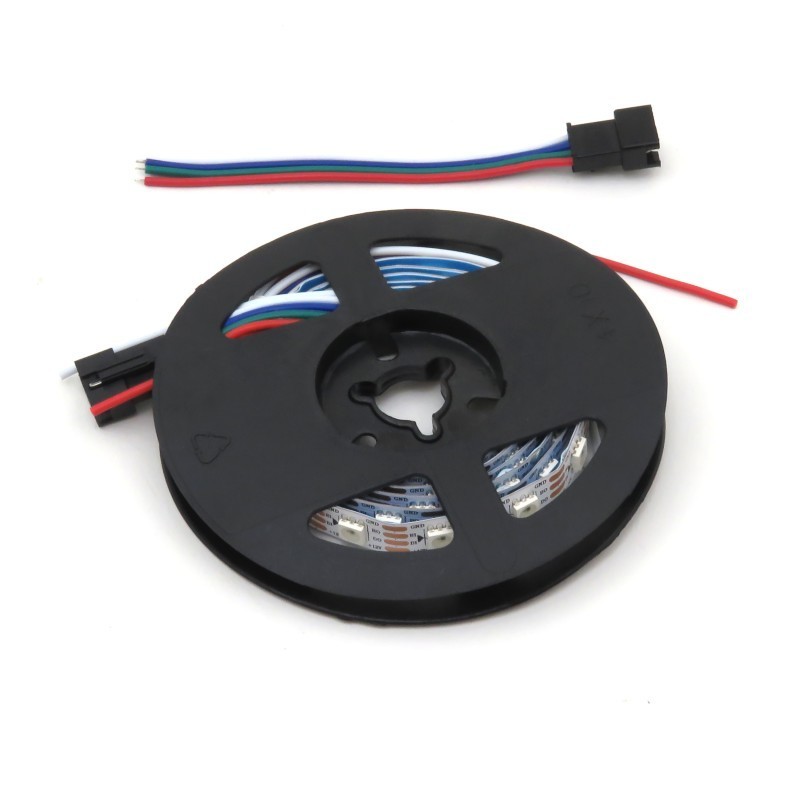

The WS2815 has a backup pin so that if a Pixel goes faulty it is bypassed with the correct data for the next pixel
| Input voltage: | DC12V |
| Power: | 14.4watt/meter, 72watt/roll(5m) |
| LED resource: | WS2815 with Backup Pin |
| Qty of LED: | 60leds/meter,300leds/roll, each LED is separately controlled |
| IC Type: | WS2815 IC(IC built inside the 5050 SMD RGB LED) |
| Qty of IC: | 60IC/meter (1 IC drives 1 led chip) |
| Pixels: | 60/meter |
| Pitch: | 16.66mm(1000/60) |
| Grey scale: | 256 |
| Bits/color: | 8-bits/color;24bit for 3colors |
| FPC size: | Width: 10mm, High: 2.5mm |
| FPC color: | BLACK |
| Protection rate | silicon tube;IP67 |
| Colors: | Full color RGB, dream color changing |
| Cuttable: | every LED is cuttable |
| Package: | 5 meters/reel in anti-static bag |
