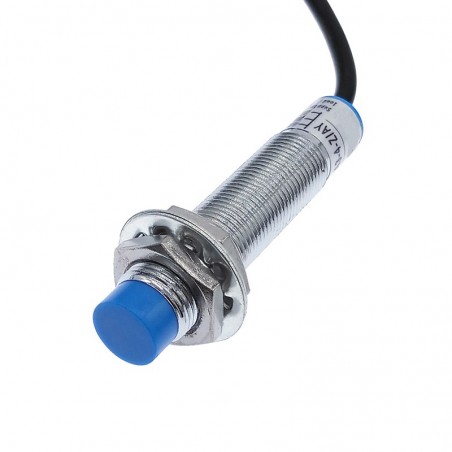

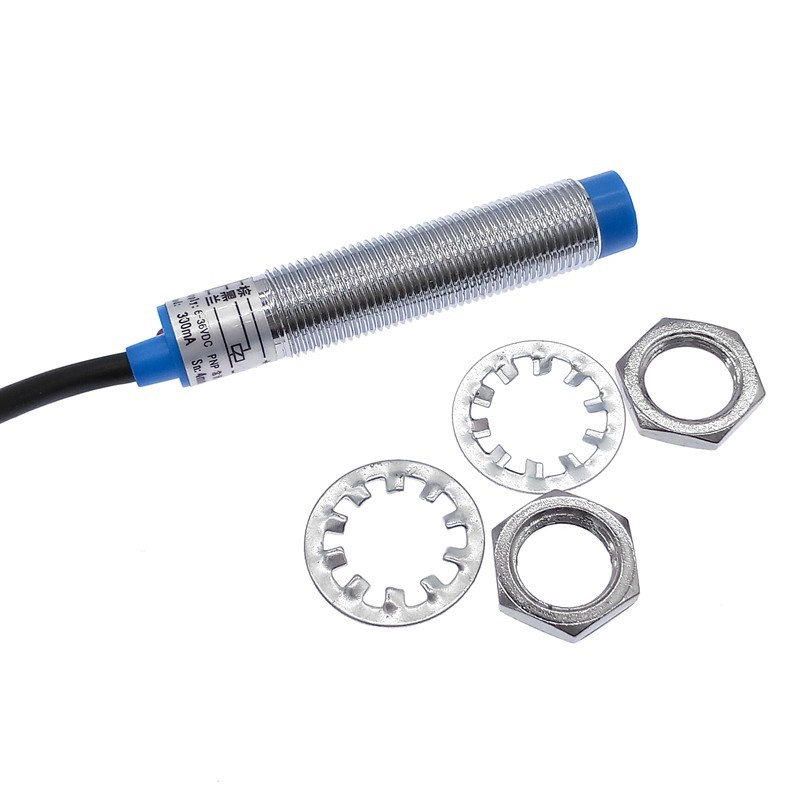

LJ12A3-4-Z-BX inductive Proximity switch sensor

LJ12A3-4-Z-BX inductive Proximity switch sensor

LJ12A3-4-Z/BX:  NPN NO 3-Line DC type 12mm diameter ; 4mm detection distance

Main Parameter

Detection distance :4mm ± 10%

Set distance:0~3.6mm

Current: 6V 360mA, 12V 200mA, 24V 96mA,   maximum instantaneous current 2A

Delay distance:10% below of the detection distance

Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)

Stand detection object:Iron 15*15*1mm

Response frequency:DC:0.5kHz

Supply voltage:DC type:DC12V DC24V DC36V(6~36V)impulse(p-p)10% below

Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing

Material:(Housing:Nickel plated brass) (Detection surface:ABS)

Protection influence:IP67(IEC specification)

This product can be applied to control relays, counters,PLC, etc.!
