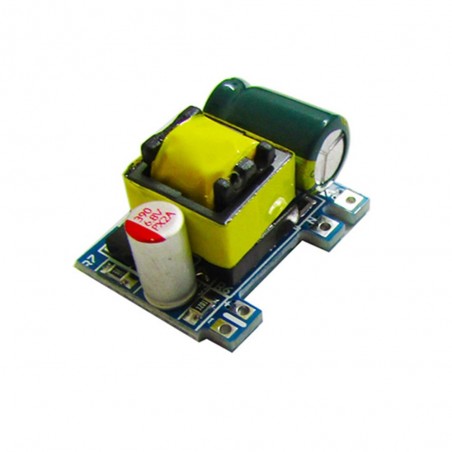

AC-DC 5V 700mA 3.5W Precision Buck Converter AC 220V to 5V DC step down Transformer power supply module

AC-DC 5V 700mA 3.5W Precision Buck Converter AC 220V to 5V DC step down Transformer power supply module

Horizontal-5V 700MA

This power module is suitable for: industrial instrumentation, smart home switch socket host, etc., general electronic products, toy products, adapter products ...

1. Output indicator: green

2. Full load power: <4W

3. No-load power: <0.05W

4. Working temperature: -20~70

5. Test resistance: 7 ohms (4.9V) for 5V

6. Output power: 3.5W, efficiency is about 80%

7. Input voltage range: AC50V-277V DC70V-390V

8. Output current: 5VmA-700mA, enters constant current mode when fully loaded

9. Output protection: overvoltage, overcurrent, overtemperature, short circuit protection, etc.

10. Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of small current and large current

11. Output voltage: 5V+-0.15v no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 60mV

12. Capacitance temperature is 105° 10,000 hours, more than 5 years at 70°, and about 20-50 years at room temperature (not recommended for use above 70°).

Power 3.5 W

Operating temperature -20~60°

Relative humidity 40-90%RH

Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV

Output power:0-4W(DC current)

Output efficiency: 80%

Switch machine overshoot: MAX 10%

Output voltage rise time: MAX 100MS

Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery

Output over power protection:YES ,recovery:Lock, restart after recovery

Short-circuit protection: YES, automatic recovery after problem solved

Temperature protection: YES,recovery:Lock, restart after recovery

Overcurrent protection: YES,recovery:Lock, restart after recovery

Size: 29.89 x 20.57 x18mm
