ALIEN 2.4G ISM DMX512 Dfi Controller Wireless Receiver 3 Pin XLR for DMX Stage Lights

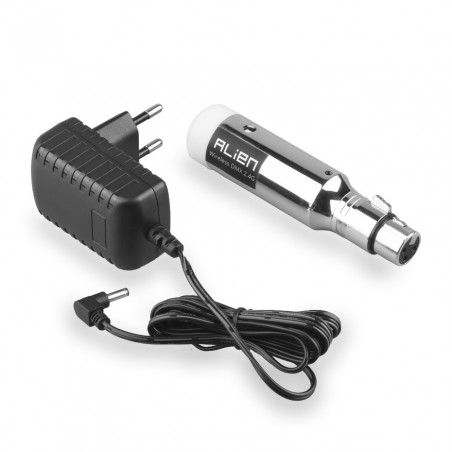

ALIEN 2.4G ISM DMX512 Dfi Controller Wireless Receiver

Latest design wireless DMX512 receiver.

Metal Black Shell. ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color).

This product adopts a 2.4G ISM frequency section. High effective GFSK modulate, communication design. No time delay when signal data is transmitting, signal data is real time and reliably.

RF frequency 2.400 - 2.525G 126 channels jumping frequency automatically, high anti-jamming ability.

The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

SPECIFICATION

2.4G wireless DMX512 R/T

7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.

Input voltage: 5VDC 500mA MIN

Communication distance: 300M (visible distance)

Max transmitting power rate: 20dBm

Receiver Sensitivity: -94dBm

CPU: 32-bit ARM Core

Modulation: GFSK

DMX Signal Interface: RS485

Operating temperature: -40 ~ 85 °C,Storage Temperature: -65 ~ 150 °C

Ambient Relative Humidity: 5 to 95% (non-condensing)

Automatic Reboot Trigger: Built-in WDT (watchdog timer)

OPERATING MANUAL

1. Press momentary switch above the side led indicator to indicate ID setting

2. Press again to set IC,to the color ID desired, adding 1 each time you press the switch will advance the color ID code.

3. Working condition: LED constant lit up:No DMX or wireless signal. Red LED flash:Transmitting Green LED flash:receiving

ESTABLISHING COMMUNICATION

1. Power on DMX512 wireless received board first and then following to power up the transmitted boards.

2. Press "Key" button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.

3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
