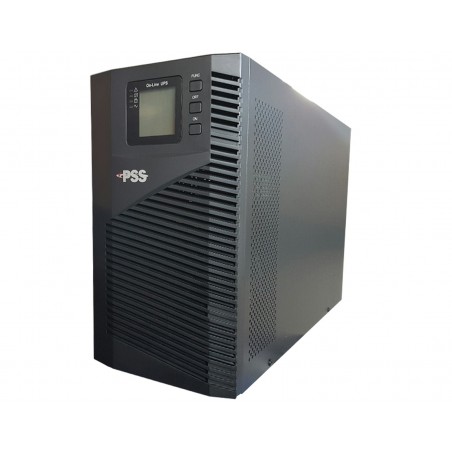

PSS M-Series 1KVA ON-LINE UPS

PSS M-Series 1KVA ON-LINE UPS

True Online Double Conversion UPS

Size: 1000VA -3000VA

Input/output Voltage: 230V/230V

Design: Tower

Power Factor: 0.9

Battery: Internal or External (model dependent)

Software: Intelligent

INTRODUCTION

Lightweight in design, these true on-line UPS’s provide the best protection for your expensive computer equipment. The double conversion technology makes this unit an excellent stabilizer for power. Pure sine wave is always provided, whether on the mains or battery. The standard units come with 10-60 minute internal batteries and are available in long run units for runtimes of up to 8 hours. M-Series UPS’s are designed for the server room environment.

APPLICATION

Computer Centres, Network Centres, Communication Systems, Automatic Control Systems or Other Critical Systems

FEATURES

• On-line double conversion
• Full digital control (DSP)
• Output power factor: 0.9
• Economic operation mode (ECO)
• Wide input voltage range
• Self-testing when UPS start-up
• Cold Start (DC)
• Multifunctional protection
• Output bypass settable
• Charger current settable
• USB port – intelligent monitoring software
• Optional SNMP or dry contact adapter

What’s in the Box

• 1 x UPS
• Manual
• Intelligent Software
• 2 x IEC Male to Female
• Serial Cable

Dimensions:

210 x 370 x 301 (W-D-H)mm  11kg
