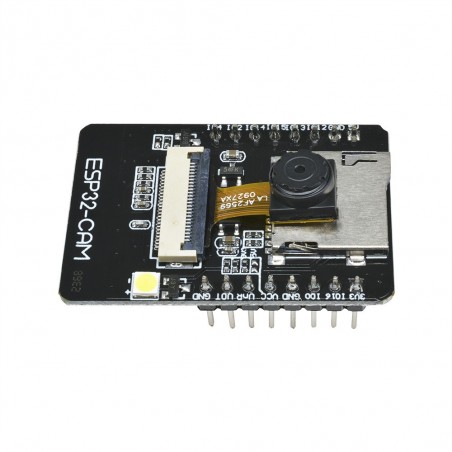

ESP32-CAM: WiFi + Bluetooth Camera Development Board - Technical Specifications:
Operating Voltage – 5V DC
Power Consumption (Typical) – 180mA without Flash / 310mA with Max Flash
WiFi – 802.11 b/g/n/e/i
Bluetooth – 4.2 BR / EDR / BLE Standards
Antenna – Onboard PCB Antenna : 2dBi Gain
CPU – 32bit Low-Power Dual-Core
RAM – Onboard 520Kb SRAM with External 2MB PSRAM
SPI Flash - Default 32Mbit
I/O Ports – 9
Serial Port Rate – Default 115200 bps
Functions Per Second (Benchmark) – Up to 600 DMIPS
Operating Frequency – 80 to 240MHz
Spectrum Range – 2412 to 2484MHz
Interface Support – UART / SPI / I2C / PWM / ADC / DAC
Camera Support – OV2640 and OV7670
Image Output Format – JPEG (Only OV2640) / BMP / Grayscale
TF Card Support – Up to 4GB
Receiving Sensitivity – CCK, 1Mbps : -90dBm – CCK, 11Mbps : -85dBm – 6Mbps (1/2 BPSK) : -88dBm – 54Mbps (3/4 64-QAM) : -70dBm – MCS7 (64Mbps, 72.2Mbps) : -67dBm
Transmission Power – 802.11b: 17±2 dBm (@11Mbps) – 802.11g: 14±2 dBm (@54Mbps) – 802.11n: 13±2 dBm (@MCS7)
Working Mode Support – STA / AP / STA+AP
Sleep Mode Support – Modem Sleep : 20mA @ 5V DC
– Light Sleep : 6.7mA @ 5V DC
– Deep Sleep : 6mA @ 5V DC
Distribution Network Support – Smart Config / AirKiss One-Click
Security Protocols – WPA / WPA2 / WPA2-Enterprise / WPS
Safe Operating Temperature – -20° to +85°C
Weight – ±20g
Dimensions – 27 x 40.5 x 4.5mm
