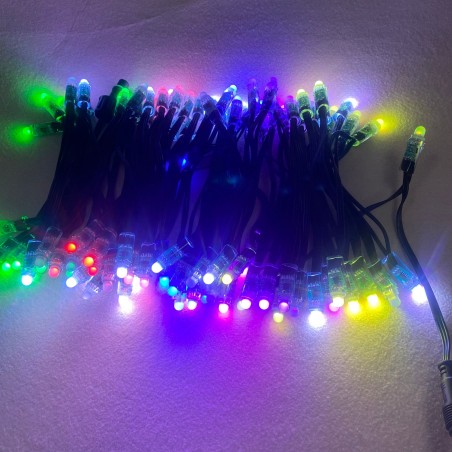

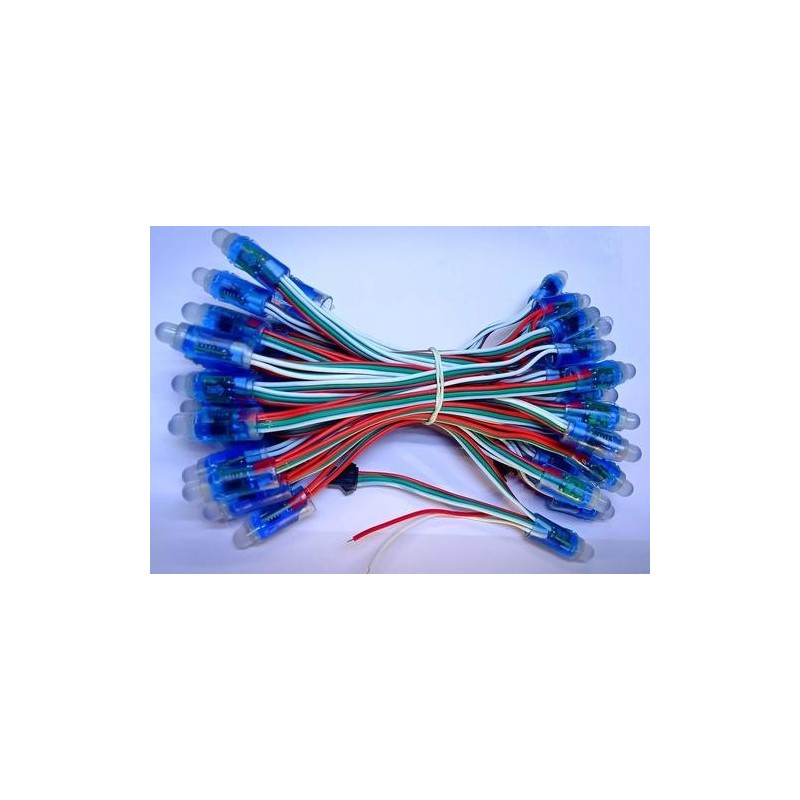

12v LED String 50 Pixels

12v LED String 50 Pixels

Features:

1. Adpots high quality 8mm 0.24w round hat RGB LED as lighting source.

2. With good protection level. can achieve IP68.

3. each module as one pixel, takes 3 dmx channels, white strobe color, can be controlled individually,

4. It is easy installation, open hole.

5;good waterproof type,IP68 rated, epoxy resin filled

6;using the strong cable, with good cold resistance ability

7:works with dmx matrix controller, or SPI pixel controller, on-line controller. etc

Specifications:

Voltage :DC12V

Max current :20mA

Max Power  0.24W

Driver method  Constant current circuit

Dimension  12mm diameter(open hole)

Viewing angle 100-120degree

Protection Level  IP68

Certification  CE and RoHS

Standard connection

50pcs nodes per string

Standard wire length

100mm;all BLACK wire 18awg

13.5mm series black waterproof male and female connectors at ends

input end: 0.2m

long male connector with black flat wire

output end:0.2m long female connector with black flat wire

Housing  transparent PVC

Fixed way  12mm diameter open hole; 12mm*14mm

Lifespan  35000 hours

Operation temperature  -40-50

Store temperature  -50-60

Applications:

lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path

and contour marking; etc.

They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls,

various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
